Global Architectures

Global Architectures

AWS enables you to build applications that span multiple regions and data centers. Here are two common global architecture patterns:

• Direct Connect Failover: High-bandwidth dedicated connections with fault tolerance
• Multi-Region Content Delivery: Global content distribution using CloudFront and Route 53

Global Architectures Video

W3schools.com collaborates with Amazon Web Services to deliver digital training content to our learners.

Architecture Patterns

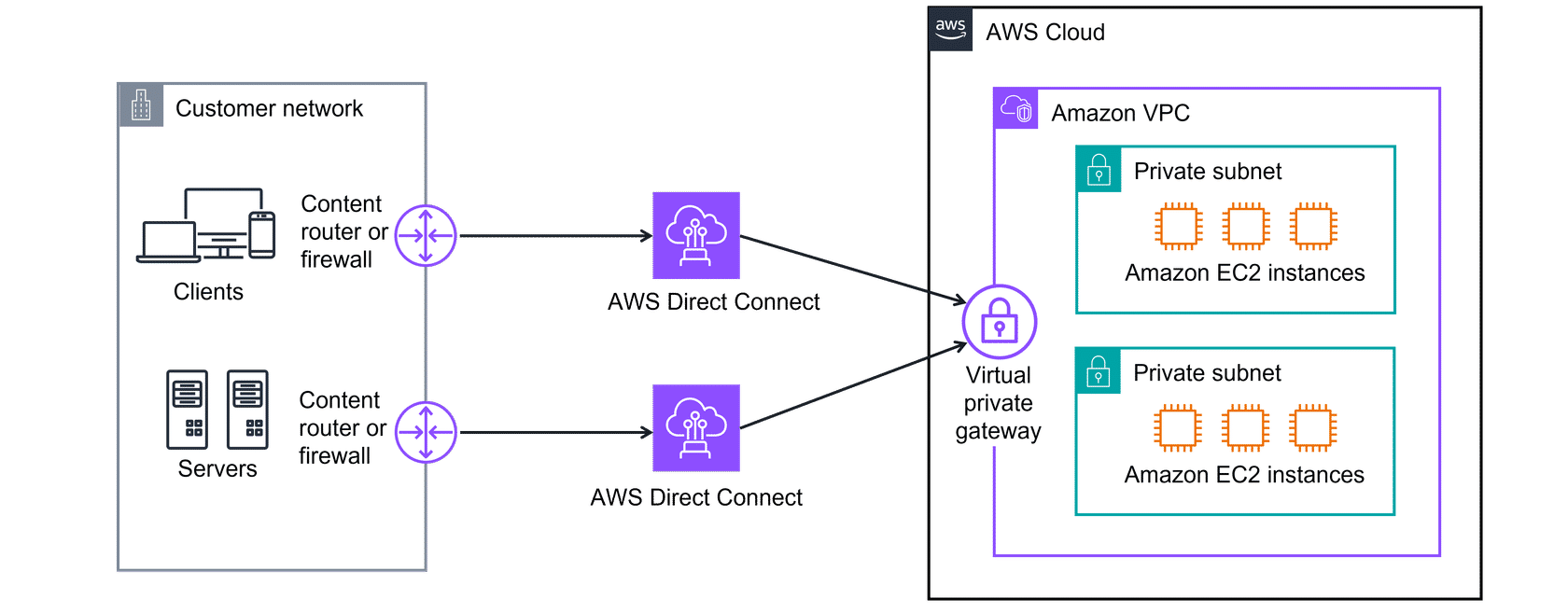

Direct Connect Failover

Use this pattern when you need high bandwidth dedicated connections for large data transfers and critical applications.

Image created by Amazon Web Services

1. Customer network: Clients and servers requiring secure, high-bandwidth connections
2. Router/firewall: Connects customer network to Direct Connect
3. Multiple connections: Provides fault tolerance and increased bandwidth
4. Virtual private gateway: Routes traffic securely to VPC resources

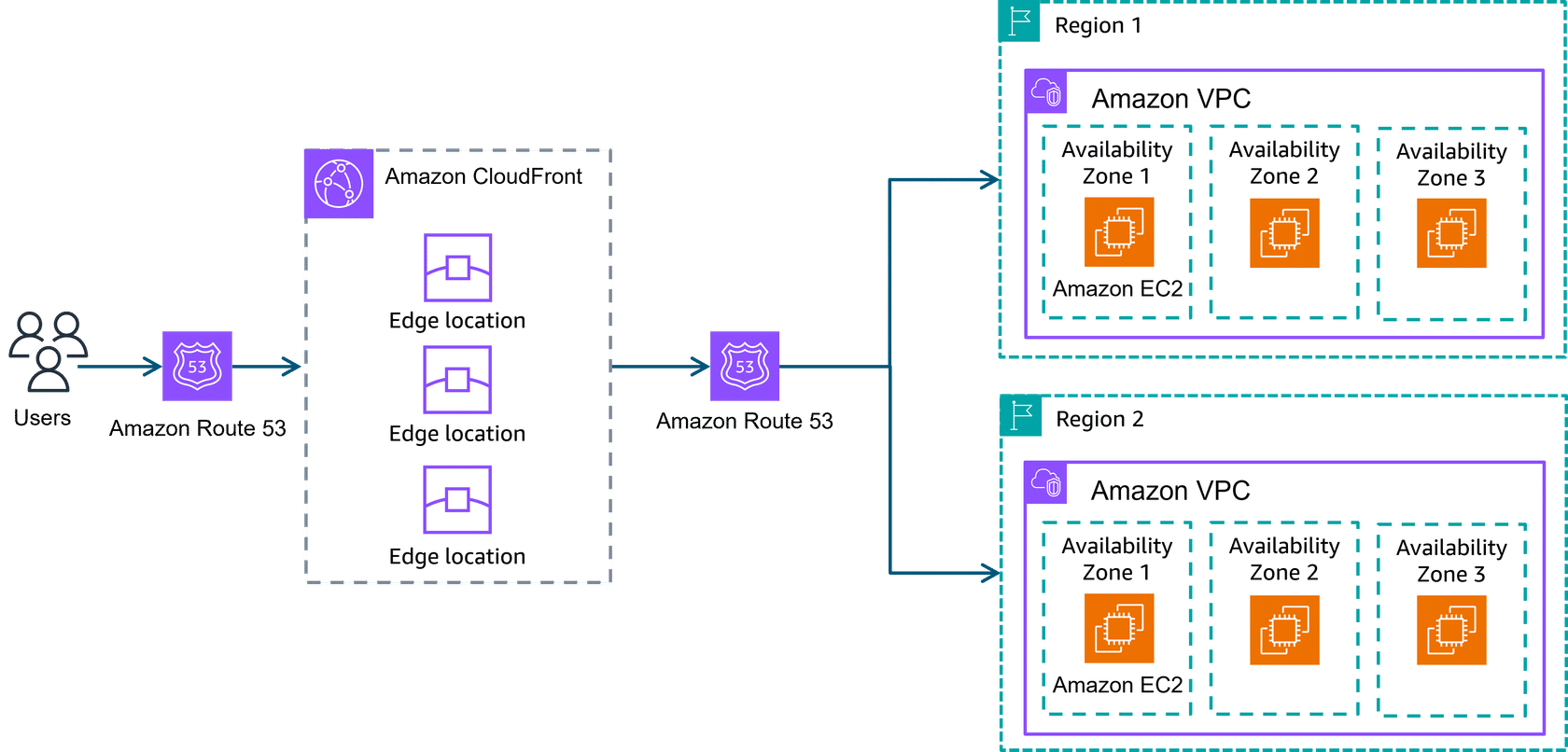

Multi-Region Content Delivery

Use this pattern to deliver content globally with low latency using CloudFront and Route 53.

Image created by Amazon Web Services

1. Users: Access website via custom domain; request goes to Route 53
2. Routing policy: Route 53 determines closest Region and edge location
3. Edge locations: CloudFront serves cached content from nearest location
4. Origin servers: Content fetched from origin across multiple AZs for high availability
